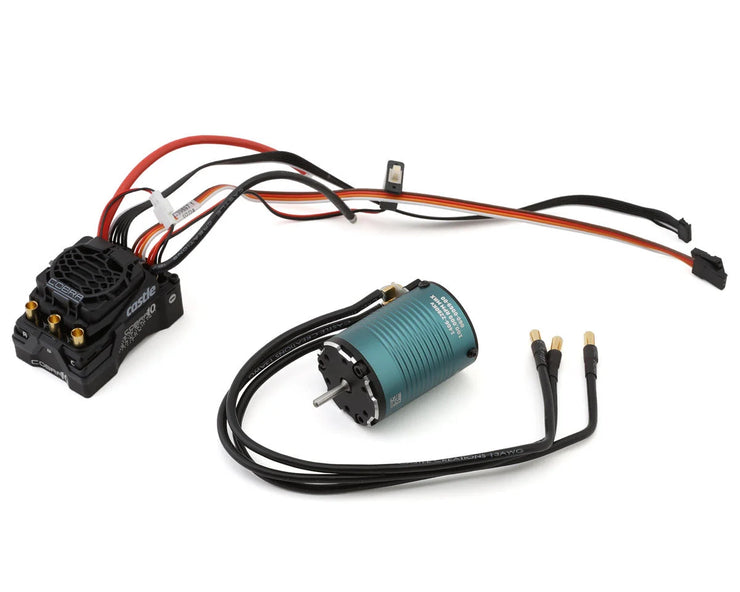

Castle Creations Cobra 10 Waterproof 1/10 Sensored Combo w/Slate (2280kv) (Crawler Edition)

010-0174-06

$284.99 Save $-284.99
3 in stock

Includes:

  • (1) Cobra 10 ESC
  • (1) 1406 Sensored Brushless Motor
  • (1) Castle Link V4 USB Adapter
  • (1) 250mm Direct Connect Sensor Wire
  • Product Manual

Specifications:
ESC
Suggested Application 1/10
Motor Type Brushless-Sensored
Input Voltage 2-6S LiPo (7.4-25.2V)*
Continuous Current -
Burst Current -
Dimensions (LxWxH) 2.2x1.51x1.44in (55.88x38.35x36.58mm)
Weight 4.02oz (114g)
BEC Voltage 5-8V (5.5V Default)
BEC Continuous Current -
BEC Peak Current 8A
Motor Connector 4mm Female Bullets
Battery Connector Bare Wire
Motor Wire -
Battery Wire 12AWG
Throttle Wire -
Programming Castle Link Windows™ (Windows 10+ Required)
Motor
Suggested Application 1/10**
Size 2280kV
Type Brushless-Sensored
Voltage 2-4S LiPo (7.4-14.4V)
Adjustable Timing -
Watts -
Connector 4mm Male Bullets
Dimensions 1.95x1.42in (49.5x36mm)
Shaft Length 0.59in (15mm)
Shaft Diameter 0.12in (3.17mm)
Weight 6.8oz (193g)
Max. Recommended Vehicle Weight Crawling 9lbs (144oz)/ Rock Racing 5lbs (80oz)

*Tech Note: The Cobra 10 ESC is designed to handle up to 6S LiPo batteries, but only allows a maximum of 3S batteries to be used with the included 1406 motor. Please check the manual to ensure compatibility and proper input voltage for the wide range of 1406 Motor kV ratings.

**Tech Note: Castle Creations recommends use for 1/10 scale vehicles specialized in low speed crawling or trail running in vehicles weighing up to 9lbs on 2s to 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs.

Castle Creations Cobra 10 Waterproof 1/10 Sensored Combo w/Slate (2280kv) (Crawler Edition)
